ABSOLUTE Digimatic Indicator ID-C – Series 543 – Calculation Type

Dial Indicators

Showing 1–12 of 54 results

  • Starting at $412.20

    The new Calculation-Type Digimatic Indicator features both a Key- Lock and Parameter-Lock to prevent accidental changing of settings during operation.
    Improved parameter setting software makes easy to set all available parameters, and determine and upload the proper coefficients for calculation. (optional)
    Fast measurement frequency allows the user to increase the number of readings per second from 10 to 50, allowing higher accuracy measurements of TIR and MAX/MIN.
    An analog bar provides easy-to-read values when scanning for Max, Min, and TIR Values.
    The Absolute Digimatic indicator performs internal calculations using the formula Ax+B+Cx-1 (assuming spindle displacement as x) while the specified coefficients A, B and C can be set with respect to the purpose of measurement or dimensions of the fixtures. This unique features allows you to read your measurements directly, without the need for conversions.

  • $412.20

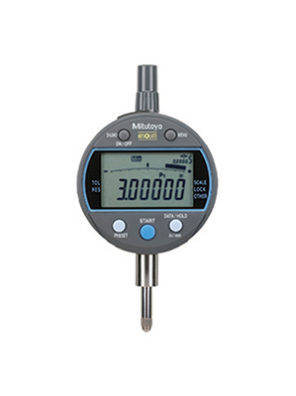

    The new Bore Gage-Type Digimatic Indicator features both a Key-Lock and Parameter-Lock to prevent accidental changing of settings during operation.
    Parameter setting software makes it easy to set all available parameters. (optional)
    Fast measurement frequency allows the user to increase the number of readings per second from 10 to 50.
    The minimum value holding function provides the easy detection of hole diameter.
    An analog bar indicator is integrated to enhance the intuition in reading.
    Go/no-go judgment is performed by setting the upper and lower tolerances.
    Up to three sets of master values and upper/lower tolerance values can be memorized.
    Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle Absolute Position from the origin when turned on.

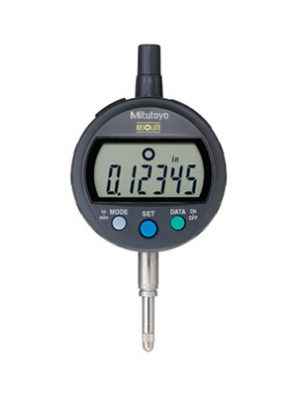

  • Starting at $287.10

    Similar in size to Series 2 dial indicators.
    As compact as standard Series 2 dial indicators.
    Large, easy-to-read LCD.
    GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
    The positive/negative count resulting from the spindle’s up/down movement can be toggled.
    Internal calculations using the simple formula of [F(x)=Ax)] are available
    Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
    The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
    With SPC data output.

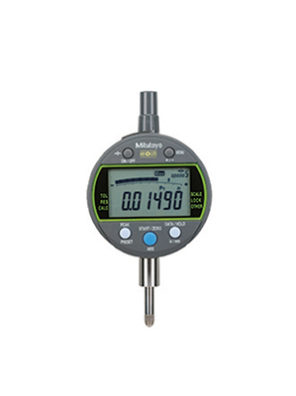

  • $412.20

    The new Peak Hold-Type Digimatic Indicator features both a Key-Lock and Parameter-Lock to prevent accidental changing of settings during operation.
    Parameter setting software makes it even eay to set all available parameters.
    An analog bar provides easy-to-read values when scanning for Max, Min and TIR Values.
    The maximum, minimum or runout value can be displayed during measurement.
    Go/no-go judgment is performed by setting the upper and lower tolerances for max., min. and runout values.
    High speed sampling ratio of 50 times/s.
    Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle Absolute Position from the origin when turned on.

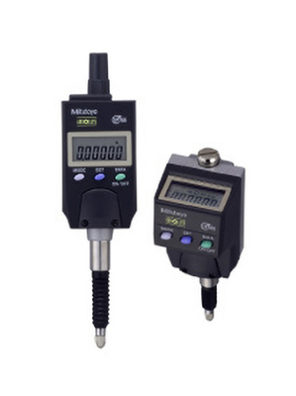

  • Starting at $334.80

    Proven ABSOLUTE sensor.
    Rated to IP66 water- and dust-proofing standard and oil resistance improved.
    Slim body design is advantageous for multi-point measurements.
    Improvement in workability with the LCD readout-rotation function.
    Back plunger design (ID-B).
    Built-in tolerance judgment function.
    Switchable resolution.
    Waterproof data output connector.
    Built-in hold/preset function

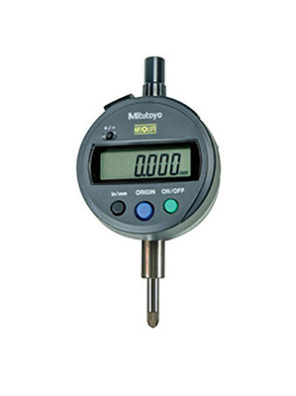

  • Starting at $163.80

    After the initial zero-setting with the Origin button, the repeated absolute positioning is no longer necessary over entire batterylife.
    Unlimited response speed eliminates overspeed errors
    Similar in size to standard Series 2 dial indicators.
    SPC data output.

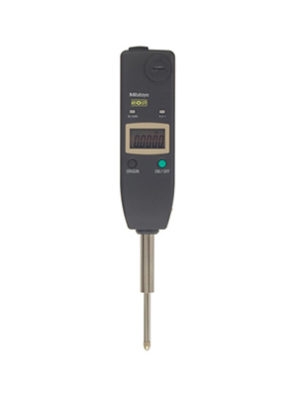

  • $180.90

    Slim type digital indicator with low price.
    Large LCD and simple key operation.
    After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life; the origin is remembered even after power-off.
    Ideal for installation into measuring devices because of it’s compact design and long battery life.
    Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
    Flat back type only no option for backs.
    SPC data output.

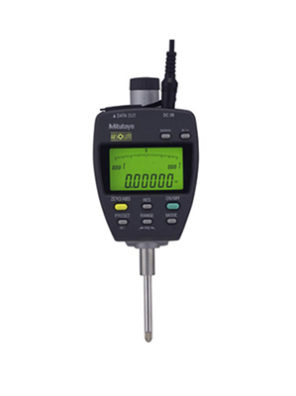

  • Starting at $618.30

    With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on.
    GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
    An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching. It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed.
    With SPC data output.

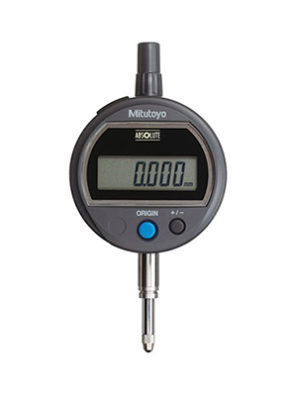

  • Starting at $180.90

    Mitutoyo unique ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on. This allows quick-start operation, which is especially useful in multipoint measurement.
    Measurement tool with a solar power source. Ready for use from 40 lux illumination.
    As compact as Series 2 dial indicators.
    SPC Output provided
    Two large buttons (three on inch/mm models) improve functionality

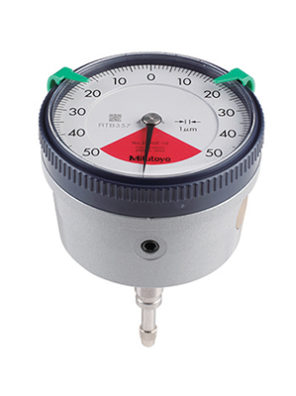

  • Starting at $159.30

    Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see.
    Models 2960T, 2961T, 2990T-10 and 2991T-10, which use Mitutoyo’s proprietary shock-proofing mechanism, have excellent durability and shock resistance.
    Model 2990T-10 provides 0.001mm graduation.

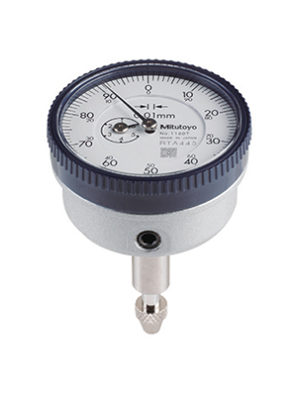

  • Starting at $131.40

    Mitutoyo’s back plunger type dial indicators are built with the measuring spindles on the back of the units. This type of indicator offers the same precision and durability as all other Mitutoyo dial indicators, and operates very effectively with optional holding bars.
    Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see.
    Model No. 1960T, which uses Mitutoyo’s proprietary shock-proofing mechanism, has excellent durability and shock resistance.

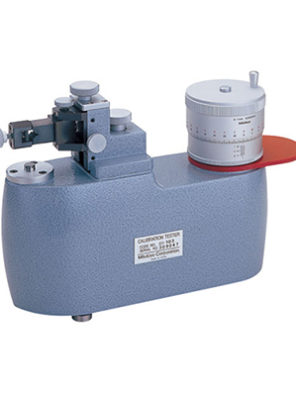

  • Starting at $4,851.00

    The Calibration Tester is specially designed to calibrate measuring accuracy of short range dial indicators, dial test indicators, and other electronic comparison gauge heads.
    Universal bracket accepts any dial indicator, dial test indicator, lever head of Mu-Checker without any additional accessory.
    Clamping capacity: ø4mm – ø10mm / .157”-.394” dia.
    Dual color-indexed directional graduations to facilitate measurements
