Accessories for Profile Projectors – Series 172

Profile Projectors

Showing all 6 results

  • $10,080.00

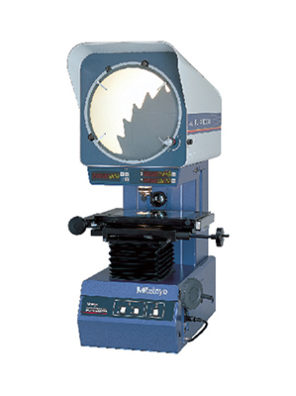

    Bench-top model that uses horizontal optical system.
    Suitable for thread pitch measurements—blurred or distorted images will not be produced when workpiece is angled.
    Erect image on the day-bright screen.
    14”(353mm) diameter protractor screen with cross-hairs and staggered lines for easy alignment.
    Digital angle measurement to 1′ or 0.01º.
    Heavy-duty workpiece table incorporates linear scales for fast, accurate measurement.
    Built-in linear scales for use with optional display counters.

  • $6,291.00

    – Bench-top model that uses horizontal optical system.
    – Suitable for thread pitch measurements-blurred or distorted images will not be produced when work piece is angled.
    – Inverted image on the day bright screen.
    – 14”(356) diameter vernier protractor screen with solid line cross-hairs for easy alignment.
    – Heavy-duty workpiece table incorporates linear scales for fast, accurate measurement.

  • Starting at $8,001.00

    – By separating axial motion, and stabilizing the XY measuring table in the vertical direction, high measuring accuracy of (3+0.02L)μm has been achieved on the PJ-H30 Series Profile Projectors. Focusing is accomplished by moving the screen head itself up & down with the hand wheel or motorized unit. The power focusing (PJ-H30D type) provides higher performance.
    – Newly designed optical system with high NA lenses provide drastically brighter and clearer screen images during surface illumination.
    – The three-lens mounting turret includes a 10X lens as standard. Four types of projection lenses (5X, 20X, 50X, 100X) are available.

  • Starting at $20,790.00

    – By separating axial motion, and stabilizing the XY measuring table in the vertical direction, high measuring accuracy of (3+0.02L)μm has been achieved on the PJ-H30 Series Profile Projectors. Focusing is accomplished by moving the screen head itself up & down with the hand wheel or motorized unit. The power focusing (PJ-H30D type) provides higher performance.
    – Newly designed optical system with high NA lenses provide drastically brighter and clearer screen images during surface illumination.
    – The three-lens mounting turret includes a 10X lens as standard. Four types of projection lenses (5X, 20X, 50X, 100X) are available.

  • $17,550.00

    Large 500mm screen

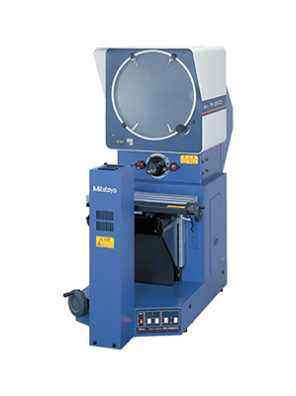

    Floor model that uses a downward illumination system.
    Digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and error-free angle measurement.
    Angled screen allows projected images to be easily traced or compared with a template.
    The oblique surface illumination system provides clear and bright images, allowing easy inspection of non-reflective work pieces such as plastic parts or printed materials.
