ABSOLUTE Digimatic Height Gauge – Series 570 – with ABSOLUTE Linear Encoder

Height Gauges

Showing 1–12 of 13 results

  • Starting at $589.50

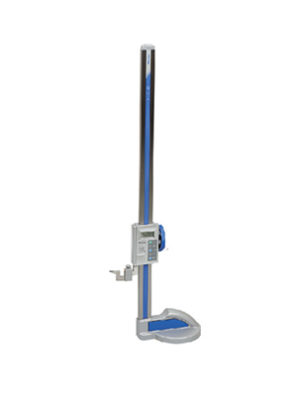

    Built-in ABSOLUTE linear encoder this encoder eliminates the necessity of setting the reference point at every poweron. It has improved reliability because no over-speed error will occur.
    Fine-adjustment carriage for smooth movement.
    Carbide-tipped scriber is provided.
    With SPC data output.

  • Starting at $581.40

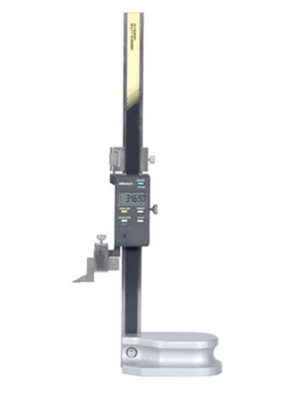

    Built in ABSOLUTE linear encoder.
    This encoder eliminates the necessity of setting the reference point at every power-on. It has improved reliability because no over-speed error will occur.
    Rigid column structure ensures high measuring accuracy.
    With large smooth slider feed wheel.
    Carbide-tipped scriber is provided.
    With SPC data output.

  • Starting at $131.40

    – Allows quick measurement of center-to-center distance between holes
    – Measurable hole diameters: Ø1-Ø38mm/.040″–1.50″

  • Starting at $4,068.00

    – The CERA Caliper Checker is designed to inspect vernier, dial and Digimatic calipers. It is comprised of permanently wrung, high-grade CERA gage blocks in a protective casting.
    – The CERA Caliper Checker also stands perpendicular to a surface for height gage inspection.
    – The zirconia based ceramic CERA measuring blocks are corrosion resistant and dimensionally stable.

  • $115.20

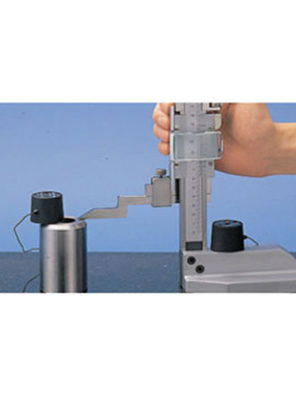

    – The Contact Sensor eliminates errors caused by jacking-up the height gage too much while taking measurements. When the scriber of a height gage touches a conductive work piece, an indicator will light up to indicate that measurement can be taken, which will result in consistent height measurements
    – Power supply: SR-44, 2 pcs.

  • Starting at $33.93

    – Attached to a height gage to measure groove and hole depth.
    – Minimum hole diameter: 5.5mm
    – Maximum distance from the bottom of the holding bar to the contact point:80mm (metric type), 2.95” (inch type)
    – Uses standard dial indicator points

  • Starting at $936.00

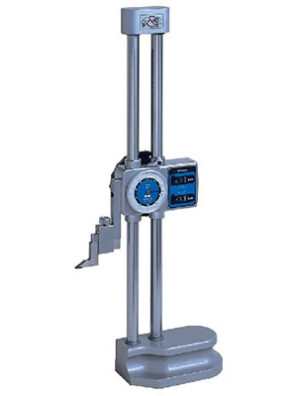

    – Easy and error-free reading with both up and down digital counters as well as a dial.
    – Provided with a feed wheel for easy coarse feeding.
    – Carbide-tipped scriber is provided.
    – The counters and dial can be re-zeroed at any scriber position.

  • Starting at $1,476.00

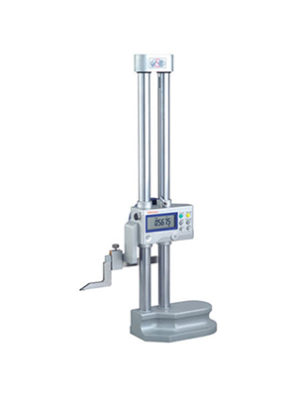

    Highly versatile multi-function type.
    Carbide-tipped long scriber is provided.
    Rigid construction ensures repeatable measurement.
    Coarse/fine feed switching.
    Bi-directional touch-signal probe is an optional accessory. It can quickly and accurately measure steps, inside width, and outside width.
    With SPC data output.

  • Starting at $1,431.00

    • Switchable resolution (.0002”/0.005mm or.0005”/0.01mm)
    • Easy-to-use standard type.
    • Carbide-tipped scriber is provided.
    • Double-column structure ensures high measuring accuracy.
    • Coarse/fine feed switching.
    • Two preset reference heights.

  • Starting at $7,632.00
    • Excellent accuracy of (1.1+0.6L/600)μm with 0.1μm/0.5μm resolution/repeatability.
    • Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed.
    • Pneumatic full/semi-floating system allows adjustment of air-cushion height.
    • Basic statistical functions are provided and, additionally, RS-232C / USB data output provides the option of evaluating measurement data externally with SPC software on a PC.
    • One-key operation for running a semi-automatic measurement.
    • Data entry from a Digimatic tool.
  • Starting at $3,591.00
    • Newly developed high accuracy and high resolution ABSOLUTE linear encoder for position detection.
    • Easy reference icon keys.
    • Possible to measure inside/outside diameter via unique process (detect the circle apex and process by tracing measurement).
    • Various types of optional probes are available.
    • Large size LCD with back light.
    • GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
    • Slider elevation knob (for travel) / wheel (for measurement).
    • With SPC and USB output.
  • $321.30
    • The Light Weight Height Gage is designed for scribing from a vertical base or for small parts.
    • Stain chrome finished scales for glare-free reading.
    • Beam and slider are made of stainless steel.
    • Carbide-tipped scriber is provided.
