3-Wire Thread Measuring System

Micrometers

Showing 1–12 of 57 results

  • 3-Wire Thread Measuring System
    Starting at $196.20

    Fast and accurate method of thread measuring available for use with Micrometer

    Select options

  • ABSOLUTE Digimatic Micrometers Series 227- with Adjustable Measuring Force
    Starting at $751.50

    – Constant and low measuring force mechanism in the thimble
    – Adjustable measuring force* accommodates various kind of work materials. *0.5-2.5N or 2-10N
    – The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy.
    – Non-rotating spindle and the new ratchet friction thimble.
    – Speedy spindle feed of 10mm/rev. and .4”/rev for inch/metric model.
    – With absolute linear scale.
    – With SPC data output.
    – With a standard bar to set the origin point (for models with 15 – 30mm / .6” – 1.2” range).
    – Supplied in fitted plastic case.

    Select options

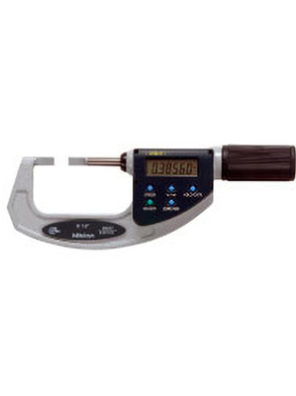

  • Blade Micrometers – Series 422, 122 – Non-Rotating Spindle
    Starting at $279.00

    The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas.
    With Ratchet Stop for constant force.
    Speedy spindle feed of 10mm / .4”/rev. (Quickmike type).
    With a standard bar except 0 -25mm and 0 – 1” model.
    Supplied in fitted plastic case.

    Select options
  • Caliper Type Micrometers - Series 343, 143Caliper Type Micrometers - Series 343, 143

    Caliper Type Micrometers – Series 343, 143
    Starting at $393.30

    With Ratchet Stop for constant force.
    With SPC output (Series 343).
    With a standard bar except 0 – 25mm and 0 – 1” model.
    Supplied in fitted plastic case.

    Select options

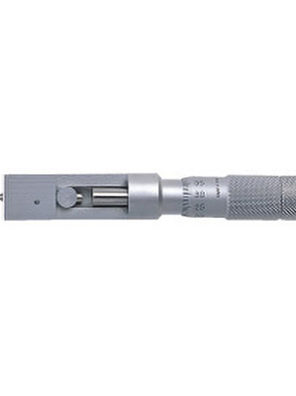

  • Can Seam Micrometers – Series 147
    Starting at $157.50

    Measures the width, height, and depth of can seams.
    Three types of micrometers are available for: steel cans, aluminum cans, and sprayer cans.
    Supplied in fitted carton.

    Select options
  • Color Ratchet & Color SpeederColor Ratchet & Color Speeder

    Color Ratchet & Color Speeder
    Starting at $4.19
    Select options

  • Coolant-proof Micrometer – Series 293 with Dust/Water Protection Conforming to IP65 Level
    Starting at $164.70

    Coolant Proof Micrometers MDC-MX Series
    Twice as Long Battery Life as before and Drastic Improvement in Measurement Efficiency

    IP65 protection level, enabling use in environments exposed to cutting oil, etc*.
    *Anti-corrosion treatment is required after use.

    Measurement data output function is available with a water-resistant connection cable.

    Auto power ON/OFF function. • Certificate of inspection* is included.
    (50mm/2” or less range models) *It is not the type used to obtain calibration certificates.

    With a standard bar except for 0-25mm/0-1″ model.
    Supplied in fitted case. Plastic case up to 150mm/6″, Wooden box over 150mm/6″

    Select options

  • Crimp Height Type Micrometers – Series 342, 142, 112
    Starting at $221.40

    IP54/65 water/dust protection(Series 342).
    Measures the height of crimp contacts.
    With Ratchet Stop for constant force.
    With SPC output(Series 342).
    With digit counter counter(Series 142).
    Supplied in fitted plastic case.

    Select options
  • Dial Snap Meters - Series 523Dial Snap Meters - Series 523

    Dial Snap Meters – Series 523
    Starting at $769.50

    Direct GO/NO-GO judgment for massproduced parts.
    Spindle diameter: 10.8mm (.425″)
    IP protection level: 54
    Supplied in fitted plastic case.

    Select options

  • Digimatic Micrometer – Series 293
    Starting at $736.20

    Accuracy: Refer to the list of specificatictions

    Resolution: 0.001mm or .00001″/0.001mm

    Flatness: 0.6µm / .000024”
    Parallelism: 5µm / .0002” for models up to 375mm / 15”
    6µm / .00024” for models up to 475mm/19”
    7µm / .00028” for models over 500mm / 20”
    Measuring faces: Carbide tipped
    Display: LCD
    Battery: SR44 (2 pcs.), 938882
    Battery life: Approx. 1.8 years under normal use

    Select options

  • Digimatic Micrometer – Series 293 MDC-MX Lite
    Starting at $139.50

    – Provided only with a zero-set key for easy origin setting.
    – A ratchet stop or friction thimble for a constant measuring force.
    – Measurement readout with large characters on the LCD screen.
    – No spindle clamp. No data output
    – Supplied in fitted plastic case

    Select options
  • Digital Outside Micrometers - Series 193Digital Outside Micrometers - Series 193

    Digital Outside Micrometers – Series 193
    Starting at $163.80

    Mechanical digit counter with 0.01mm or .001″ reading for quick and error-free reading
    With a standard bar except for 0-25mm / 0 -1” model.

    Select options
