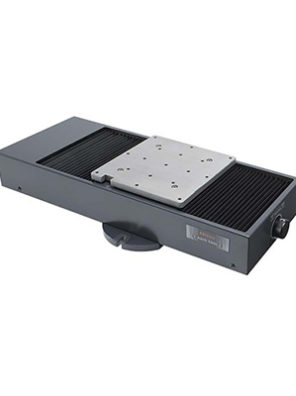

Optional Accessories for Automatic Measurement

Surface Testers

Showing all 8 results

  • Starting at $1,467.00

    Compatible with SV-3200, SV-C3200, SV-C4500, CS-3200 and CNC Models

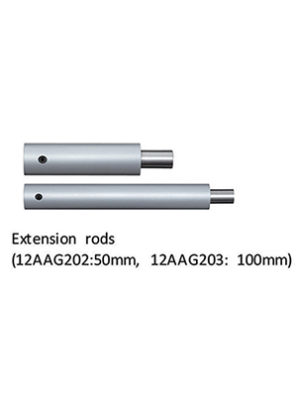

  • Starting at $222.30

    Compatible with: SJ-410, SJ-500, SV-2100, SV-3100,SV-3000CNC, SV-M3000CNC, SV-C3200, SV-C4500 Series

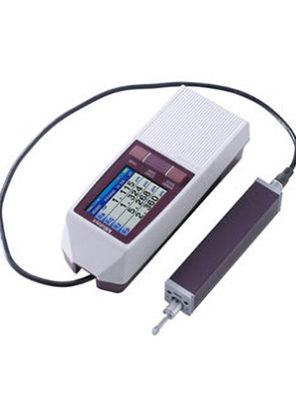

  • Starting at $2,187.00

    The 2.4-inch color graphic LCD provides excellent readability and an intuitive display that is easy to negotiate. The LCD also includes a backlight for improved visibility in dark environments.
    The Surftest SJ-210 can be operated easily using the buttons on the front of the unit and under the sliding cover.
    Up to 10 measurement conditions and one measured profile can be stored in the internal memory.
    An optional memory card can be used as an extended memory to store large quantities of measured profiles and conditions.
    Access to each feature can be password-protected, which prevents unintended operations and allows you to protect your settings.
    The display interface supports 16 languages, which can be freely switched.
    An alarm warns you when the cumulative measurement distance exceeds a preset limit.
    The Surftest SJ-210 complies with the following standards: JIS (JIS-B0601-2001, JIS-B0601-1994, JIS B0601-1982), VDA, ISO- 1997, and ANSI.
    In addition to calculation results, the Surftest SJ-210 can display sectional calculation results and assessed profiles, load curves, and amplitude distribution curves.

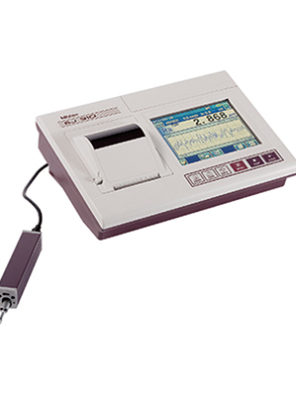

  • Starting at $3,753.00

    • The data processing unit offers large 5.7-inch color graphic LCD touch-panel for superior readability and operability. The LCD also includes a backlight for improved visibility in dark environments.
    • The excellent user interface provides intuitive and easy-to-understand operability.
    • Complies with the following standards: JIS(JIS-B0601-2001, JIS-B0601-1994, JISB0601-1982), VDA, ISO- 1997, and ANSI.
    • The Measure-Start and other frequently used buttons are strengthened to resist wear and the detrimental effects of workshop contaminants.
    • Equipped with a large-capacity battery allowing approximately 1500 measurements when fully charged.
    • Includes convenient carrying case for protection in the field.
    • A high-speed printer is built into the main unit. Either landscape or portfolio mode can be selected according to the application. Paper saving mode is supported.
    • The display interface supports 16 languages, which can be easily switched.
    • 10 sets of measurement conditions can be saved in the measurement unit–an optional memory card can save measurement conditions and the measured profile.

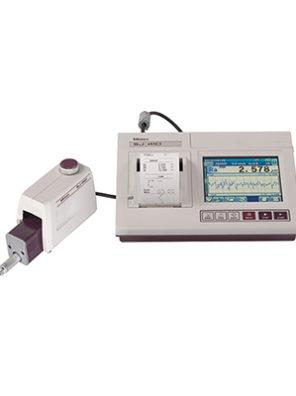

  • Starting at $7,011.00

    – The new SJ-411/412 has numerous innovative features combined with high accuracy and a competitive price makes this instrument the new leader in its class.
    – Both skidded and skidless measurement are possible with this series. Equipped with 46 roughness parameters that conform to the latest ISO, DIN, ANSI, and JIS standards.
    – A wide-range, high-resolution detector and a drive unit provide superior high accuracy measurement in its class. Detector
    – Measuring range: 800μm
    – Resolution: 0.000125μm (at 8μm range)
    – Drive unit
    – Straightness/traverse length
    – – SJ-411: 0.3μm/25mm
    – – SJ-412: 0.5μm/50mm
    – Ultra-fine steps, straightness and waviness can be measured by using the skidless measurement function.
    – The handheld data processing unit and the 5.7-inch color graphic LCD touch-panel provides superior readability and operability. The LCD also includes a backlight for improved visibility in dark environments.
    – The excellent user interface provides intuitive and easy-to-understand operability.
    – Measured data can be output to a PC with optional RS-232C or USB cable.
    – Digital filter function for non-distorted roughness profiles.
    – GO/NG judgment function.
    – Auto-calibration function.
    – The display interface supports 16 languages, which can be freely switched.
    – Simplified contour analysis function supports the four types of measurement: step, level change, area and coordinate difference.
    – Access to each feature can be passwordprotected, which prevents unintended operations and allows you to protect your settings.
    – The optional attachments for mounting on a column stand significantly increase the operability.

  • Special Order

    High precision and high performance type surface roughness tester with a dedicated control unit, achieving user-friendly display and simple operation
    User-friendly display and simple operation equipped with a highly visible color 7.5-inch TFT LCD.
    Easy positioning A joy stick built in the dedicated control unit allows easy and quick positioning. Fine positioning of a small stylus, required for measuring the inner side of a small hole, can be easily made using the manual knob.
    Easy setting of measuring conditions for surface roughness. Equipped with simple input function allows inputs according to drawing instruction symbols of ISO/JIS roughness standards. Troublesome measuring condition settings can be easily input by directly selecting a drawing instruction symbol for surface roughness from the menu.

  • Special Order

    High precision and high performance column-mounted surface roughness tester with a dedicated control unit,achieving user-friendly display and simple operation.
    User-friendly display and simple operation equipped with a highly visible color 7.5-inch TFT LCD.
    Easy positioning A joy stick built in the dedicated control unit allows easy and quick positioning. Fine positioning of a small stylus, required for measuring the inner side of a small hole, can be easily made using the manual knob.
    Easy setting of measuring conditions for surface roughness. Equipped with simple input function allows inputs according to drawing instruction symbols of ISO/JIS roughness standards. Troublesome measuring condition settings can be easily input by directly selecting a drawing instruction symbol for surface roughness from the menu.

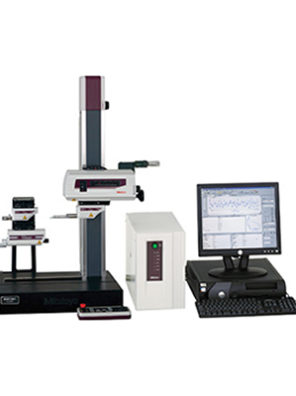

  • Starting at $2,187.00

    The Surftest SV-3200 Series provide high-accuracy, high-level analysis and multi-functionality in measurement of surface roughness.

    • Mitutoyo’s Surftest SV-3200 Series provides high-accuracy, high-level analysis and multi-functionality in threedimensional analysis and measurement of fine contour, as well as the conventional type surface roughness measurement.
    • Peripheral devices such as the auto-leveling table are available to enhance operability and to enable automatic measurement.
    • FORMTRACEPAK V5, dedicated dataanalyzing software, is installed. This software allows data management in a consistent format, from the work site to the laboratory.
    • Ceramic, which is known for its superb anti-abrasive property, is used as the X-axis drive unit guide. No lubrication of the guide is required.
    • High-accuracy glass scales are built-in on X-axis (resolution: 1.97μin (0.05μm) and Z2-axis (column, resolution: 39.4μin (1μm) to ensure high-accuracy positioning.
    • The SV-3200 series manifest high-reliability especially in the horizontal roughness parameters (S, Sm), that require highaccuracy of the X-axis travel.
    • When equipped with high accuracy Y-axis table and 3D surface analysis software MCubeMap, this offers CNC type capabilities usually performed on Extreme series machines.
    • Various optional detector holders such as Crank Rotary type and Manual Rotary type make this versatile for many different applications.
    • New optional Digital Automatic Tilt (DAT) function is best suited for workpieces that are too large for leveling tables
