Laser Scan Micrometer LSM – 9506 Series 544

Laser Micrometers

Showing all 6 results

  • Laser Scan Micrometer LSM – 9506 Series 544
    $8,046.00

    Bench Top Type Non-contact Measuring System

    Select options

  • Laser Scan Micrometer LSM-500S – Series 544
    Starting at $8,397.00

    High Accuracy Non-contact Measuring System
    – Capable of measuring down to 5μm outside diameter*1.
    – Provides ultra-high accuracy of ±0.3μm over the entire measuring range (5μm to 2mm).
    – Ultra-high speed measurement of 3200 scan/sec.
    – Suitable for high-speed lines or in applications subject to vibration.

    Select options

  • Laser Scan Micrometer LSM-902/6900 – Series 544
    $10,980.00

    – Non-contact laser-based measuring system, mainly for outside diameter measurement.Suitable for delicate or moving workpieces.
    – Accuracy of ±0.5μm in the ø0.1 – ø25mm range can be achieved. It is highly suitable suited for pin gage measurement.
    – Narrow range accuracy of ±(0.3+0.1 D)μm for high precision measurement.
    – Ultra-high repeatability of ±0.05μm.
    – The system consists of a measuring unit (LSM-902) and a display unit (LSM-6900).

    Select options

  • LSM-5200 Display Unit – Series 544
    $2,700.00

    A compact controller which could be used for multi-unit system configurations.
    Capable of simple connection to a PC via USB.
    A Panel-mount type display unit designed for the LSM-S series.
    Analog I/O and RS-232C is standard.
    Measurement of odd fluted parts, and simultaneous measurement / 2-program function included.

    Select options

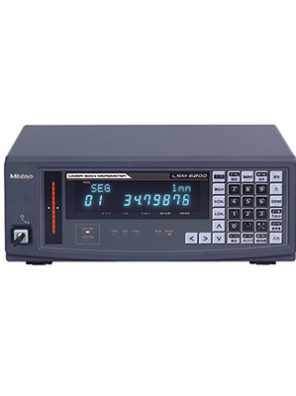

  • LSM-6200 Disply Unit – Series 544
    $2,952.00

    2-axis display unit enables 2 items to be displayed simultaneously.
    Capable of statistical analysis such as:average, maximum value, minimum value, range (max. – min.) and more.
    Segment measurement (7 points) or edge measurement (1 to 255 edge) can be selected.
    A function to eliminate abnormal values is standard.
    100 tolerance values, preset values, or settings can be stored.

    ** Cannot be connected to 544-496A.
    ** Previous models such as 544-451 cannot be connected.

    Select options

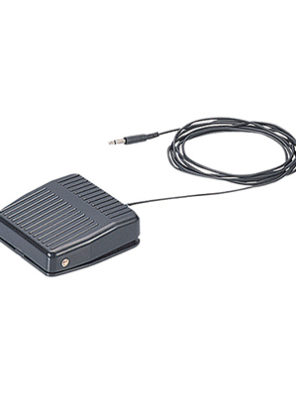

  • Optional Accessories for LSM
    Starting at $176.40
    Select options
