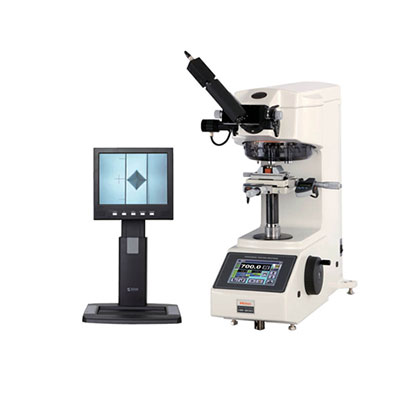

HM – 210/220 Series 810 – Micro Vickers Hardness Testing Machines

Starting at $19,620.00

– The electromagnetic force motor used in the loading mechanism enables the test force to be freely selected (see test force specifications) over the wide range of 0.4903mN to 19610mN (0.05gf to 2 kgf).
It is also possible to freely set load dwell times. Now your desire for absolute control over the indentation size in Vickers hardness testing can be satisfied. The HM-200 series always offers the test force most appropriate for the specimen material and shape.
– The long working distance objectives used enable a very comfortable working distance between the objective and the specimen surface.
This, greatly reduces the possibility of collision between the specimen and the objective during focusing operations. (e.g. for 50X objectives: 1.1mm for conventional models, 2.5mm for HM-200 series)
– Newly-designed ‘MH Plan’ objectives are optimized for measuring indentation images.
The lineup includes 6 types of long working distance objectives: 10X, 20X, 50X and 100X for measuring indentation images, and 2X and 5X for enabling wide-range measurement around indentations.
– LEDs, which have a longer life, produce less heat, consume less power and are more energy efficient than incandescent bulbs, are employed for the illumination system.
– The motorized turret allows for up to 4 objective lenses and 2 indenter assemblies to be mounted at the same time.

Clear
Qty:
SKU: N/A Category:

Description

SKUModel No.Main UnitFixed Test ForceArbitrary Test ForceControl UnitIndenterObjective LensFilar Eye PieceCCTV CameraSoftwareRemarksPriceBuyhf:att:pa_colorhf:att:pa_item-type
64AAB305PHM-210 Type A810-40098.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf)≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsColor LCD Touch ScreenVickers10x, 50xDual Line, 10X, .01µ min--TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$19,620.00
Qty:
64AAB306PHM-210 Type A V/K810-40098.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf)≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsColor LCD Touch ScreenVickers and Knoop10x, 20x, 50xDual Line, 10X, .01µ min--TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$24,930.00
Qty:
64AAB307PHM-220 Type A810-4050.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61,29.42, 49.03, 98.07, 196.1, 294.2, 490.3, 980.7,1961, 2942, 4903, 9807, 19610 (0.05 gf-2kgf)< 1 gf in .1 gf increments, ≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsColor LCD Touch ScreenVickers10x, 20x, 50xDual Line, 10X, .01µ min--TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$23,310.00
Qty:
64AAB308PHM-220 Type A V/K810-4050.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61,29.42, 49.03, 98.07, 196.1, 294.2, 490.3, 980.7,1961, 2942, 4903, 9807, 19610 (0.05 gf-2kgf)< 1 gf in .1 gf increments, ≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsColor LCD Touch ScreenVickers and Knoop10x, 20x, 50xDual Line, 10X, .01µ min--TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$30,060.00
Qty:
64AAB323PHM-210 Type B810-40398.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf)≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsColor LCD Touch ScreenVickers10x, 50x---TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. / LOAD DWELL TIME: 0-999 sec.$32,341.50
Qty:
64AAB324PHM-210 Type B V/K810-40398.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf)≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsColor LCD Touch ScreenVickers and Knoop10x, 20x, 50x---TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. / LOAD DWELL TIME: 0-999 sec.$37,633.50
Qty:
64AAB325PHM-220 Type B810-4080.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61,29.42, 49.03, 98.07, 196.1, 294.2, 490.3, 980.7,1961, 2942, 4903, 9807, 19610 (0.05 gf-2kgf)< 1 gf in .1 gf increments, ≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsColor LCD Touch ScreenVickers10x, 20x, 50x---TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 11,33,60µ/ sec. LOAD DWELL TIME: 0-999 sec.$36,067.50
Qty:
64AAB380HM-210 Type D810-40398.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf)≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsNone, By PCVickers10x, 50x-3 megapixel, 1/2 inAVPAK-10TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$55,800.00
Qty:
64AAB381PHM-210 Type D V/K810-40398.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf)≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsNone, By PCVickers and Knoop10x, 20x, 50x-3 megapixel, 1/2 inAVPAK-10TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$61,200.00
Qty:
64AAB382PHM-220 Type D810-4080.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61,29.42, 49.03, 98.07, 196.1, 294.2, 490.3, 980.7,1961, 2942, 4903, 9807, 19610 (0.05 gf-2kgf)< 1 gf in .1 gf increments, ≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsNone, By PCVickers10x, 50x, 100x-3 megapixel, 1/2 inAVPAK-10TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$59,850.00
Qty:
64AAB383PHM-220 Type D V/K810-4080.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61,29.42, 49.03, 98.07, 196.1, 294.2, 490.3, 980.7,1961, 2942, 4903, 9807, 19610 (0.05 gf-2kgf)< 1 gf in .1 gf increments, ≤100 gf in 1 gram increments, > 100gf in 10 gram incrementsNone, By PCVickers and Knoop10x, 50x, 100x-3 megapixel, 1/2 inAVPAK-10TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation$66,510.00
Qty:

Optional Accessories

SKUDescriptionPriceBuyhf:att:pa_colorhf:att:pa_item-type
810-423MANUAL STAGE 50X50$1,854.00
Qty:
810-427MANUAL STAGE 2"x2"""$1,854.00
Qty:
11AAC104Objective Lens 2X, HM210/220$1,368.00
Qty:
11AAC105Objective Lens 5X, HM210/220$846.00
Qty:
11AAC106Objective Lens 10X, HM210/220$839.70
Qty:
11AAC107Objective Lens 20X, HM210/220$1,089.00
Qty:
11AAC108Objective Lens 100X, HM210/220$1,422.00
Qty:
11AAC129Measuring Microscope, HM210/220$3,465.00
Qty:
11AAC109Knoop Indenter Assy(HM-210)$4,338.00
Qty:
11AAC110Knopp Indenter Assy(HM-220)$6,912.00
Qty:
19BAA058VICKERS DIAMOND INDENTER HM210/ G, H 1 STD LOAD TESTERS$708.30
Qty:
19BAA059VICKERS DIAMOND INDENTER HM220/G,H 2 AND 3 WIDE LOAD TESTERS$1,134.00
Qty:
19BAA061KNOOP DIAMOND INDENTER HM210/G,H 1 STD LOAD TESTERS$1,035.00
Qty:
19BAA062KNOOP DIAMOND INDENTER HM220/G,H 2 AND 3 WIDE LOAD TESTERS$1,683.00
Qty:
810-017VISE, 100MM SIZE$1,368.00
Qty:
810-013SPECIMEN HOLDER (THIN PLATE)$436.50
Qty:
810-015SPECIMEN HOLDER (WIRE OR BALL)$348.30
Qty:
810-014SPECIMEN HOLDER (WIRE)$648.00
Qty:
810-019SPECIMEN TILTING HOLDER$2,178.00
Qty:
810-020UNIVERSAL SPECIMEN HOLDER$759.60
Qty:
810-018ROTARY TABLE$1,224.00
Qty:
810-084ROTATABLE UNIVERSAL SPECIMEN HOLDER$3,681.00
Qty:
810-085ADJUSTABLE SPECIMEN HOLDER (THIN PLATE)$1,665.00
Qty:
810-095ROTATABLE SPECIMEN STAGE$3,681.00
Qty:
375-056MICRO-SCALE FOR MF$342.90
Qty:
810-650-1TABLE FOR RESIN-MOLDED SPECIMEN 25$1,224.00
Qty:
810-650-2TABLE FOR RESIN-MOLDED SPECIMEN 30$1,224.00
Qty:
810-650-3TABLE FOR RESIN-MOLDED SPECIMEN 31$1,224.00
Qty:
810-650-4TABLE FOR RESIN-MOLDED SPECIMEN 38$1,224.00
Qty:
810-650-5TABLE FOR RESIN-MOLDED SPECIMEN 40$1,224.00
Qty:
810-641VIBRATION ISOLATOR FOR 810 SERIES$6,660.00
Qty:
810-870ASAMPLE HEATING DEVICE HST-250$879.30
Qty:
810-420MANUAL STAGE 25mmX25mm$879.30
Qty:
810-424MANUAL STAGE 1"X1"""$853.20
Qty:

Features

– The electromagnetic force motor used in the loading mechanism enables the test force to be freely selected (see test force specifications) over the wide range of 0.4903mN to 19610mN (0.05gf to 2 kgf).
It is also possible to freely set load dwell times. Now your desire for absolute control over the indentation size in Vickers hardness testing can be satisfied. The HM-200 series always offers the test force most appropriate for the specimen material and shape.
– The long working distance objectives used enable a very comfortable working distance between the objective and the specimen surface.
This, greatly reduces the possibility of collision between the specimen and the objective during focusing operations. (e.g. for 50X objectives: 1.1mm for conventional models, 2.5mm for HM-200 series)
– Newly-designed ‘MH Plan’ objectives are optimized for measuring indentation images.
The lineup includes 6 types of long working distance objectives: 10X, 20X, 50X and 100X for measuring indentation images, and 2X and 5X for enabling wide-range measurement around indentations.
– LEDs, which have a longer life, produce less heat, consume less power and are more energy efficient than incandescent bulbs, are employed for the illumination system.
– The motorized turret allows for up to 4 objective lenses and 2 indenter assemblies to be mounted at the same time.

Technical Data

Test force range:
HM-210A: 9 steps + arbitrary test force
HM-220A: 19 steps + arbitrary test force
Load dwell time: 0 – 999s
Manual XY stage unit
Stage size: 100x100mm
Travel range: 25x25mm
with Digimatic in/mm micrometer heads
Resolution: 0.001mm
Max. specimen height: 133mm (Stage size: 25 x 25mm)
Max. specimen height: 121mm (Stage size: 50 x 50mm)
Max. specimen depth: 160mm (from the center of indenter)
Optical path: 4-port objectives switching system of Infinity-correction optical system
Resolution: 0.01μm (When using objectives of X40 or more)
Data output: Serial interface (RS-232),
Digimatic interface, USB 2.0
Power supply: 39VA 100-125/220-240V AC, 50/60Hz
Dimensions: (W x D x H): 315x671x595mm
Mass: 43kg

Optional Accessories (Factory-installed option)

11AAC104: Objective lens unit 2X
11AAC105: Objective lens unit 5X
11AAC106: Objective lens unit 10X
11AAC107: Objective lens unit 20X
11AAC108: Objective lens unit 100X
11AAC129: Measuring microscope (Digital ocular)
11AAC109: Knoop Indenter Assembly (HM-210 Series)
11AAC110: Knoop Indenter Assembly (HM-220 Series)

Optional Accessories

19BAA058: Diamond indenter for Vickers (HM210 Series standard test force)
19BAA059: Diamond indenter for Vickers (HM220 Series low test force)
19BAA061: Diamond indenter for Knoop (HM210 Series)
19BAA062: Diamond indenter for Knoop (HM220 Series)
810-017: Vise
810-013: Specimen (thin plate) holder
810-014: Specimen (wire) holder
810-015: Specimen (wire or ball) holder
810-019: Specimen tilting holder
810-020: Universal specimen holder
810-018: Rotary table
810-084: Rotatable universal specimen holder
810-085: Adjustable specimen (thin plate) holder
810-095: Rotatable specimen stage
375-056: Stage Micrometer (glass) Micro-scale
810-650-1: Resin mold specimen stage ø25.4
810-650-2: Resin mold specimen stage ø30
810-650-3: Resin mold specimen stage ø31.75
810-650-4: Resin mold specimen stage ø38.1
810-650-5: Resin mold specimen stage ø40
810-641: Vibration Isolator
810-870A: Sample Heating Device HST-250
810-420: 25x25mm stage (metric only)
810-423: 50x50mm stage (metric only)
810-424: 1”x1” in/mm stage (standard)
810-427: 2”x2” in/mm stage

Additional information

Weight N/A
Dimensions N/A
Model No.

HM-210 Type A, HM-210 Type A V/K, HM-220 Type A, HM-220 Type A V/K, HM-210 Type B, HM-210 Type B V/K, HM-220 Type B, HM-210 Type D, HM-210 Type D V/K, HM-220 Type D, HM-220 Type D V/K

Main Unit No.

810-400, 810-405, 810-403, 810-408

Fixed Test Force

98.07, 196.1, 294.2, 490.3, 980.7, 1961, 2942,4903, 9807 (10gf-1000gf), 0.4903, 0.9807, 1.961, 2.942, 4.903, 9.807, 19.61,29.42, 49.03, 98.07, 196.1, 294.2, 490.3, 980.7,1961, 2942, 4903, 9807, 19610 (0.05 gf-2kgf)

Arbitrary Test Force

≤100 gf in 1 gram increments, > 100gf in 10 gram increments, < 1 gf in .1 gf increments, ≤100 gf in 1 gram increments, > 100gf in 10 gram increments

Control Unit

Color LCD Touch Screen, None, By PC

Indenter

Vickers, Vickers and Knoop

Objective Lens

10x, 50x, 10x, 20x, 50x, 10x, 50x, 100x

Filar Eye Piece

-, Dual Line, 10X, .01µ min

CCTV Camera

-, 3 megapixel, 1/2 in

Software

-, AVPAK-10

Remarks

TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec.
LOAD DWELL TIME: 0-999 sec. / OBJECTIVE TURRET: Motor driven and manual operation, TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 60µ/ sec. / LOAD DWELL TIME: 0-999 sec., TEST FORCE CONTROL: Force generation by electromagnetic and automatic control (load, dwell, unload) / LOADING RATE: 11,33,60µ/ sec.
LOAD DWELL TIME: 0-999 sec.
