Digimatic Caliper Gauges – Series 209 – External Tube Thickness Measurement Type

Dial Indicators

Showing 37–48 of 54 results

  • Digimatic Caliper Gauges – Series 209 – External Tube Thickness Measurement Type
    Starting at $662.40

    Versatile OD measuring gauges for groove thickness, tube thickness, and hard-to-reach dimensions. The Digimatic Caliper Gauges provide error-free LCD readings as well as data output for SPC analysis.

    Select options

  • Digimatic Indicator ID-H – Series 543 – High Accuracy and High Functional Type
    Starting at $818.10

    This new-generation digital indicator offers the excellent accuracy and functionality expected from this class of indicator. Take advantage of its high accuracy backed up by 0.5ìm / .00002″ resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display.
    The maximum, minimum, or runout value can be displayed during measurement.
    GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
    With SPC data output.
    With RS-232C input/output

    Select options

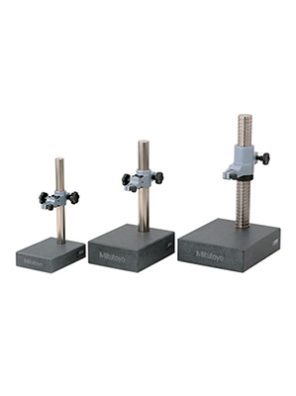

  • Granite Comparator Stands – Series 215
    Starting at $850.50

    Mitutoyo’s Granite Comparator Stands are basic building-blocks for the assembly of special-purpose, precision measuring equipment. By mounting precision measuring instruments such as Digimatic indicators, Mu-Checker Cartridge Heads, and Linear Gauges onto the stands, it is possible to handle all manner of measuring applications. The rigid granite base is free from burrs, pileups, rust, and deterioration over time.

    Select options

  • i-Checker – Series 170
    $13,410.00

    The i-Checker is specially designed to calibrate measuring accuracy of dial indicators, dial test indicators, and other electronic comparison gage heads with a stroke of up to 100mm (4″).
    ±(0.2+L/100)µm indication accuracy.
    Directly inspects an indicator with a stroke of up to 100mm (4″). The dial test indicator, bore gage and lever-type inductive head can be inspected with optional accessories.
    Adjustment of the measurement position is very easily accomplished because of semi-automatic measurement and full automatic measurement functions.
    Creates and prints out the simple inspection certificate.
    Saves inspection result as CSV file for reusable inspection result by any kind of software.

    Select options

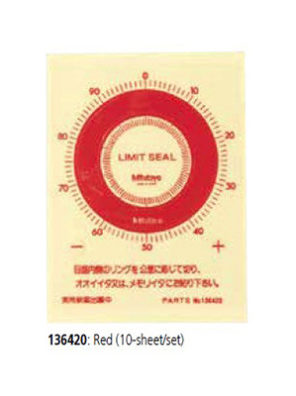

  • Limit Stickers – Optional Accessories for Digimatic and Dial Indicators
    $9.59

    Stuck on the dial face or crystal of a Series 2 dial indicator (55.6mm or 57mm bezel dia.) to indicate tolerance limits.

    Select options

  • Magnetic Stand – Series 7
    Starting at $18.14

    Mitutoyo’s Magnetic Stands accept all dial indicators and dial test indicators. The On-Off switch offers instant mounting and dismounting without any adverse effect to the indicators or work-piece surface.

    Select options

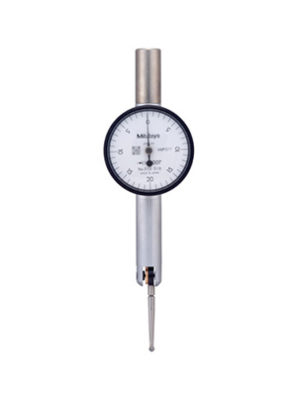

  • Pocket Type Dial Test Indicators – Series 513
    Starting at $116.10

    Jeweled bearings assure higher sensitivity and accuracy.
    Reversible measuring direction.
    Two holding bars are supplied. (Full sets only.)
    Fully adjustable bezel/dial face.
    Contact point is adjustable within 220°.
    Bezel is sealed with on O-ring to keep out water/oil.

    Select options

  • Precision Granite Stands (w/ Black Granite Bases) – Series 517
    Starting at $133.20

    Mitutoyo’s Granite Comparator Stands are basic building-blocks for the assembly of special-purpose, precision measuring equipment. By mounting precision measuring instruments such as Digimatic indicators, Mu-Checker Cartridge Heads, and Linear Gauges onto the stands, it is possible to satisfy all manner of measuring assignment. The rigid granite base is free from burrs, pileups, rust, and deterioration over time.

    Select options

  • Quick-Mini – Series 700
    Starting at $152.10

    A compact comparator designed for carrying convenience, it is very suited for quick inspection of paper thickness, leather, wires, plastic parts, etc. The digital display provides error-free reading with 0.01mm / .0005” resolution.
    Measuring force less than 2N.
    Supplied in fitted plastic case.

    Select options

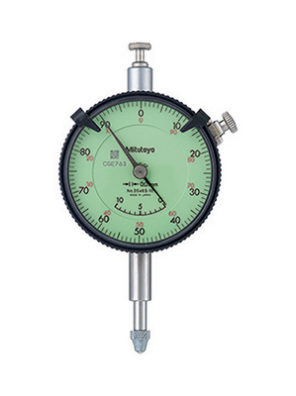

  • Special Dial Indicators – Series 2
    Starting at $111.60

    Adjustable hand dial gauge
    The hand position can be adjusted independently of the vertical movement of the spindle by rotating the top knob.

    Select options

  • Spindle Lifting Lever and Cable – Optional Accessories for Digimatic and Dial Indicators
    Starting at $1.26

    The Spindle Lifting Lever is attached to the top end of the spindle for improved inspection efficiency when using a dial indicator mounted on a stand.

    Select options

  • Thickness Gauges – Series 547 Flat Anvil Type – Digital Type
    Starting at $261.00

    The Thickness Gauges offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a wide range of applications.
    Wide range of applications with various types of measuring faces (on the spindle and anvil).
    The digital models incorporate Mitutoyo’s popular ID-C and ID-S Series Digimatic Indicators to provide error-free LCD readings as well as data output for SPC analysis.
    547-400S is ideally suited for measuring thicknesses of paper, film, wire, sheet metal and similar materials.

    Select options
