Showing 37–48 of 57 results
-
Starting at $549.90– The Quickmike provides a speedy spindle feed of 10mm/.4” per thimble rotation as compared to the conventional micrometer with 0.5mm/.025” per rotation.
– Its wide 30mm/1.2” measuring range allows various workpieces with different shapes to be measured quickly.
– Non-rotating spindle and the new ratchet friction thimble.
– Speedy spindle feed of 10mm/rev.
– With absolute linear scale.
– IP54 dust/water protection (when not connected with data output cable).
– With SPC data output.
– With a standard bar to set the origin point (for models with a range over 30mm/1.2”).
– Supplied in fitted plastic case. -
Starting at $112.50Ratchet function works both from the thimble and the speeder,allowing easy one-handed operation.
Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.
Provided with a Certificate of Inspection.
With a standard bar except for 0-25mm and 0-1in models.
Supplied in fitted case.
Heat-Insulated frame. -

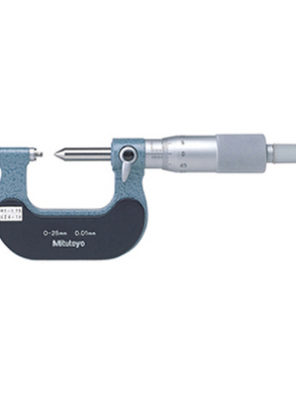

Starting at $210.60Provided with a 60 degree V-anvil and conical spindle for easily measuring pitch diameters of metric or unified screw threads.
With Ratchet Stop for constant force.
With a standard bar for zero point adjustment except 0-25mm model.
Supplied in fitted plastic case. -

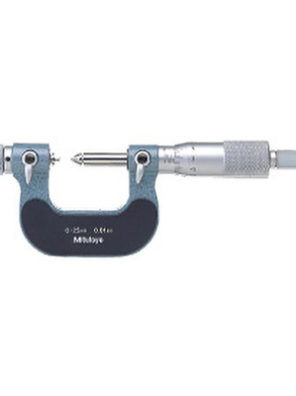

Starting at $415.80IP65 water/dust protection(Series 326).
60 degree or 55 degree V-anvil and conical spindle (interchangeable) are optional, which are made of high-grade steel, hardened and precision ground.
With Ratchet Stop for constant force.
With SPC output (Series 326)
With a standard bar except 0-25mm 0-1 in model
Supplied in fitted plastic case. -
Starting at $213.30Measures thickness of sheet metal, paper, plastic, and rubber parts.
With Ratchet Stop for constant force.
With a standard bar except for 0 – 25mm / 0 – 1” model.
IP65 water/dust protection (Series 389*). *Except for 389-513/389-713
Supplied in fitted plastic case. -

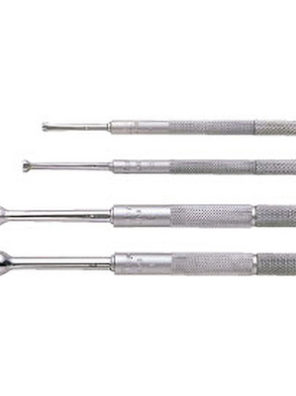

Starting at $22.41Used with an outside micrometer for measuring inside diameter of bores.
4 sizes of gauges are supplied in a fitted case.
Extra long for gauging deep and shallow holes, slots, and similar work pieces.
Gauging surface is fully hardened to insure long tool life. -
Starting at $415.80Various types of indicator can be selected according to the measurement applications.
Supplied in fitted plastic case. -
Starting at $124.20Designed to measure the wall thickness of various tubing.
With Ratchet Stop for constant force.
With a standard bar except 0-25mm and 0-1” model.
Supplied in fitted plastic case. -
Starting at $198.90Designed to measure the wall thickness of various tubing.
With Ratchet Stop for constant force.
With digit counter.
With a standard bar except 0-25mm and 0-1” model.
Supplied in fitted plastic case. -
Starting at $368.10IP65 water/dust protection
Designed to measure the wall thickness of various tubing.
With Rachet Stop for constant force.
With SPC output.
With a standard bar except 0-25mm and 0-1in model.
Supplied in fitted case. -
Starting at $8.46Tip length: metric type:10mm ±5μm inch type: .5″ ±.0002″
Spindle Dia: *1 .250” / 6.35mm
*Spindle diameter for 101469
(.250″ ball) is .315″/ 8mm -
Starting at $223.20IP65 water/dust protection (Series 331).
The anvil and spindle have a small diameter for measuring splined shafts,slots, and keyways.
With Ratchet Stop for constant force.
With SPC output (Series 331).
With a standard bar except 0-25mm and 0-1” model.
Supplied in fitted plastic case.
