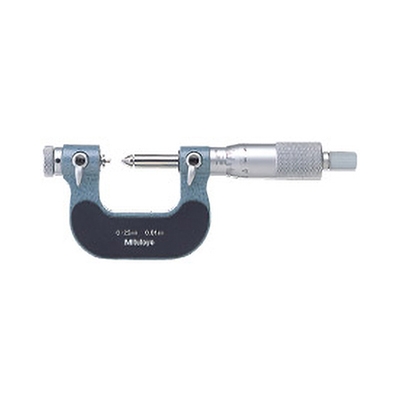

Screw Thread Micrometers – Series 326, 126 – Interchangeable Anvil-Spindle Tip Type

Starting at $415.80

IP65 water/dust protection(Series 326).
60 degree or 55 degree V-anvil and conical spindle (interchangeable) are optional, which are made of high-grade steel, hardened and precision ground.
With Ratchet Stop for constant force.
With SPC output (Series 326)
With a standard bar except 0-25mm 0-1 in model
Supplied in fitted plastic case.

Clear
Qty:
SKU: N/A Category:

Description

SKUItem TypeRangeAccuracyMassRemarksPriceBuyhf:att:pa_item-typehf:att:pa_color
126-137Inch0-1in±.0002in240g-$415.80
Qty:
inch
126-138Inch1-2in±.0002in290g-$497.70
Qty:
inch
126-139Inch2-3in±.0002in390g-$659.70
Qty:
inch
126-140Inch3-4in±.00025in450gwith Standard$659.70
Qty:
inch
126-141Inch4-5in±.00025in530g-$711.00
Qty:
inch
126-142Inch5-6in±.00025in620g-$749.70
Qty:
inch
126-143Inch6-7in±.00025in730g-$972.00
Qty:
inch
126-901Inch0-1in±.0002in240gwith Anvil Set (126-800)$852.30
Qty:
inch
126-902Inch1-2in±.0002in290gwith Anvil Set (126-800)$936.00
Qty:
inch
126-903Inch2-3in±.0002in390gwith Anvil Set (126-800)$999.00
Qty:
inch
126-904Inch3-4in±.00025in450gwith Anvil Set (126-800)$1,089.00
Qty:
inch
126-905Inch4-5in±.00025in530gwith Anvil Set (126-800)$1,152.00
Qty:
inch
126-906Inch5-6in±.00025in620gwith Anvil Set (126-800)$1,188.00
Qty:
inch
326-351-30Inch/Metric0-1in 0-25mm±.0002in350gDigital model$617.40
Qty:
inch-metric
326-352-30Inch/Metric1-2in 25-50mm±.0002in380gDigital model$653.40
Qty:
inch-metric
326-353-30Inch/Metric2-3in 50-75mm±.0002in470gDigital model$703.80
Qty:
inch-metric
326-354-30Inch/Metric3-4in 75-100mm±.00025in510gDigital model$743.40
Qty:
inch-metric
126-125Metric0-25mm±4µm240g-$415.80
Qty:
metric
126-126Metric25-50mm±4µm290g-$497.70
Qty:
metric
126-127Metric50-75mm±4µm390g-$562.50
Qty:
metric
126-128Metric75-100mm±5µm450g-$659.70
Qty:
metric
126-129Metric100-125mm±5µm530g-$711.00
Qty:
metric
126-130Metric125-150mm±5µm620g-$749.70
Qty:
metric
126-131Metric150-175mm±6µm730g-$868.50
Qty:
metric
126-132Metric175-200mm±6µm860g-$886.50
Qty:
metric
126-133Metric200-225mm±6µm1,030g-$1,071.00
Qty:
metric
126-134Metric225-250mm±7µm1,200g-$1,134.00
Qty:
metric
126-135Metric250-275mm±7µm1,370g-$1,188.00
Qty:
metric
126-136Metric275-300mm±7µm1,540g-$1,197.00
Qty:
metric
326-251-30Metric0-25mm±4µm350gDigital model$617.40
Qty:
metric
326-252-30Metric25-50mm±4µm380gDigital model$629.10
Qty:
metric
326-253-30Metric50-75mm±4µm470gDigital model$703.80
Qty:
metric
326-254-30Metric75-100mm±5µm510gDigital model$743.40
Qty:
metric

Anvils

SKUDescriptionPriceBuy
126-801TIP/M1 64-48 TPI$70.47
Qty:
126-802TIP/M2 44-28 TPI$70.47
Qty:
126-803TIP/M3 24-14 TPI$70.47
Qty:
126-804TIP/M4 13-9 TPI$70.47
Qty:
126-805TIP/M5 8-5 TPI$70.47
Qty:
126-806TIP/M6 4.5-3.5 TPI$70.47
Qty:

Optional Accessories (digital model)

SKUDescriptionPriceBuy
05CZA662SPC cable with data switch (40in / 1m)$75.42
Qty:
05CZA663SPC cable with data switch (80in / 2m)$83.21
Qty:

Features

IP65 water/dust protection(Series 326).
60 degree or 55 degree V-anvil and conical spindle (interchangeable) are optional, which are made of high-grade steel, hardened and precision ground.
With Ratchet Stop for constant force.
With SPC output (Series 326)
With a standard bar except 0-25mm 0-1 in model
Supplied in fitted plastic case.

Technical Data

Resolution*:0.001mm or .00005″/0.001mm
Graduation**:0.01mm or .001″
Spindle feed error: 3µm/.00012”
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models

Function of Digital Model

Zero-setting, Data hold, Data output, 2 Presets, Function lock.
inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Optional Accessories for Digital Model

05CZA662: SPC cable with data switch (1m/40”)
05CZA663: SPC cable with data switch (2m/80”)

Additional information

Weight N/A
Dimensions N/A
Item Type

Inch, Inch/Metric, Metric

Range

0-1in, 1-2in, 2-3in, 3-4in, 4-5in, 5-6in, 6-7in, 0-1in 0-25mm, 1-2in 25-50mm, 2-3in 50-75mm, 3-4in 75-100mm, 0-25mm, 25-50mm, 50-75mm, 75-100mm, 100-125mm, 125-150mm, 150-175mm, 175-200mm, 200-225mm, 225-250mm, 250-275mm, 275-300mm

Accuracy

±.0002in, ±.00025in, ±4µm, ±5µm, ±6µm, ±7µm

Mass

240g, 290g, 390g, 450g, 530g, 620g, 730g, 350g, 380g, 470g, 510g, 860g, 1,030g, 1,200g, 1,370g, 1,540g

Remarks

-, with Standard, with Anvil Set (126-800), Digital model
