Dial Snap Gauges – Series 201

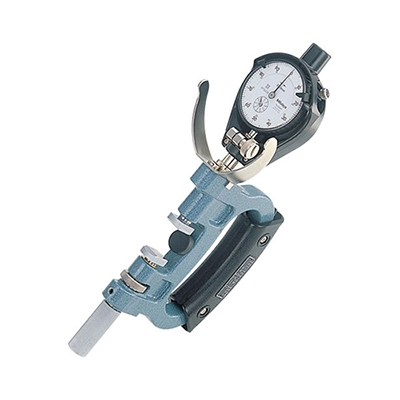

Name: Dial Snap Gauges - Series 201
SKU: 15058
Availability: InStock

Dial Tension Gauges - Series 546Dial Caliper Gauges External Type - Series 209

Starting at $388.80

Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes.
Dial indicator is optional.
Anvil retracting stroke: .078”/2mm
Anvil positioning range: 1”/25mm
Wide (.53 x .47”/13.5 x 12mm), flat carbide anvils.
Both front edges of the anvil are chamfered for easy insertion.

SKU: N/A Category: Dial Indicators

Description
Additional information

Description

SKU	Item Type	Range	Parallelism	Measuring Force	Recommended Dial Indicator (optional)	Price	Buy	hf:att:pa_item-type
201-151	Inch	0-1in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$400.50	Qty:	inch
201-152	Inch	1-2in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$419.40	Qty:	inch
201-153	Inch	2-3in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$455.40	Qty:	inch
201-154	Inch	3-4in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$463.50	Qty:	inch
201-155	Inch	4-5in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$506.70	Qty:	inch
201-156	Inch	5-6in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$546.30	Qty:	inch
201-157	Inch	6-7in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$576.90	Qty:	inch
201-158	Inch	7-8in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$597.60	Qty:	inch
201-159	Inch	8-9in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$634.50	Qty:	inch
201-161	Inch	10-11in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$702.00	Qty:	inch
201-160	Inch	9-10in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$666.90	Qty:	inch
201-162	Inch	11-12in	.00025 in or less	15N±3N	2803SB-10 (.0001 in reading)	$729.00	Qty:	inch
201-101	Metric	0-25mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$388.80	Qty:	metric
201-102	Metric	25-50mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$404.10	Qty:	metric
201-103	Metric	50-75mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$441.00	Qty:	metric
201-104	Metric	75-100mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$455.40	Qty:	metric
201-105	Metric	100-125mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$493.20	Qty:	metric
201-106	Metric	125-150mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$528.30	Qty:	metric
201-107	Metric	150-175mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$558.00	Qty:	metric
201-108	Metric	175-200mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$580.50	Qty:	metric
201-109	Metric	200-225mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$615.60	Qty:	metric
201-110	Metric	225-250mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$648.00	Qty:	metric
201-111	Metric	250-275mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$678.60	Qty:	metric
201-112	Metric	275-300mm	5µm or lessµm	15N±3N	2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)	$708.30	Qty:	metric

Features

Technical Data

Anvil retracting stroke:.078”/2mm
Anvil positioning range: 1”/25mm
Anvil flatness: .00004”/1µm

Additional information

Weight	N/A
Dimensions	N/A
Item Type	Inch, Metric
Range	0-1in, 1-2in, 2-3in, 3-4in, 4-5in, 5-6in, 6-7in, 7-8in, 8-9in, 9-10in, 10-11in, 11-12in, 0-25mm, 25-50mm, 50-75mm, 75-100mm, 100-125mm, 125-150mm, 150-175mm, 175-200mm, 200-225mm, 225-250mm, 250-275mm, 275-300mm
Parallelism	.00025 in or less, 5µm or lessµm
Measuring Force	15N±3N
Recommended Dial Indicator	2803SB-10 (.0001 in reading), 2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)
