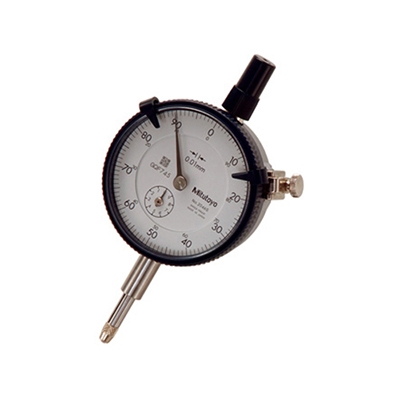

Dial Indicators – Series 2 – Metric Standard Type

Starting at $69.75

Series 2 dial indicators are Mitutoyo’s most popular, and have the widest application.
Standard 0.01mm graduation dial gauges having an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard.
The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face.
The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use.
A carbide contact point is used.
The grand gear uses stainless steel that is resistant to wear and deformation.
Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant.

Clear
Qty:
SKU: N/A Category:

Description

SKURange / Range/RevolutionAccuracyGraduationDial ReadingForceTypePriceBuyhf:att:pa_colorhf:att:pa_item-type
2044S5mm/1mm0.012mm0.010-1001.4N or lessw/ Lug$69.75
Qty:
2044S-095mm/1mm0.013mm0.010-1001.4N or lessw/ Lug$80.60
Qty:
2044S-605mm/1mm0.012mm0.010-1002.5N or lessw/ Lug$140.40
Qty:
2044SB5mm/1mm0.012mm0.010-1001.5N or lessFlat-Back$69.75
Qty:
2044SB-095mm/1mm0.013mm0.010-1001.4N or lessFlat-Back$80.60
Qty:
2044SB-605mm/1mm0.012mm0.010-1001.4N or lessFlat-Back$140.40
Qty:
2045S5mm/1mm0.012mm0.010-50-01.4N or lessw/ Lug$70.38
Qty:
2045SB5mm/1mm0.012mm0.010-50-02.5N or lessFlat-Back$70.38
Qty:
2046S10mm/1mm0.013mm0.010-1001.4N or lessw/ Lug$105.30
Qty:
2046S-0910mm/1mm0.015mm0.010-1001.4N or lessw/ Lug$111.60
Qty:
2046S-6010mm/1mm0.013mm0.010-1002.5N or lessw/ Lug$157.50
Qty:
2046SB10mm/1mm0.013mm0.010-1001.4N or lessFlat-Back$105.30
Qty:
2046SB-0910mm/1mm0.015mm0.010-1001.4N or lessFlat-Back$111.60
Qty:
2046SB-6010mm/1mm0.013mm0.010-1002.5N or lessFlat-Back$147.60
Qty:
2047S10mm/1mm0.013mm0.010-50-01.4N or lessw/ Lug$105.30
Qty:
2047SB10mm/1mm0.013mm0.010-50-01.4N or lessFlat-Back$105.30
Qty:
2050S20mm/1mm0.020mm0.010-1002.0N or lessw/ Lug$126.00
Qty:
2050S-1920mm/1mm0.020mm0.010-1002.0N or lessw/ Lug$143.10
Qty:
2050S-6020mm/1mm0.020mm0.010-1002.5N or lessw/ Lug$157.50
Qty:
2050SB20mm/1mm0.020mm0.010-1002.0N or lessFlat-Back$126.00
Qty:
2050SB-1920mm/1mm0.020mm0.010-1002.0N or lessFlat-Back$143.10
Qty:
2050SB-6020mm/1mm0.020mm0.010-1002.5N or lessFlat-Back$157.50
Qty:
2052S30mm/1mm0.025mm0.010-1002.5N or lessw/ Lug$158.40
Qty:
2052S-1930mm/1mm0.025mm0.010-1002.5N or lessw/ Lug$173.70
Qty:
2052SB30mm/1mm0.025mm0.010-1002.5N or lessFlat-Back$158.40
Qty:
2052SB-1930mm/1mm0.025mm0.010-1002.5N or lessFlat-Back$158.40
Qty:
2109S-101mm/0.2mm0.005mm0.0010-100-01.5N or lessw/ Lug$186.30
Qty:
2109S-701mm/0.2mm0.005mm0.0010-100-01.5N or lessw/ Lug$233.10
Qty:
2109SB-702mm/0.2mm0.005mm0.0010-100-01.5N or lessFlat-Back$233.10
Qty:
2110S-101mm/0.1mm0.005mm0.0010-1001.5N or lessw/ Lug$191.70
Qty:
2110SB-101mm/0.1mm0.005mm0.0010-1001.5N or lessFlat-Back$191.70
Qty:
2110SB-701mm/0.1mm0.005mm0.0010-1002.0N or lessFlat-Back$167.40
Qty:
2113S-102mm/0.2mm0.007mm0.0010-100-01.5N or lessw/ Lug$172.80
Qty:
2113SB-102mm/0.2mm0.007mm0.0010-100-01.5N or lessFlat-Back$172.80
Qty:
2118S-105mm/0.2mm0.010mm0.0010-100-1001.5N or lessw/ Lug$187.20
Qty:
2118SB-105mm/0.2mm0.010mm0.0010-100-1001.5N or lessFlat-Back$174.60
Qty:
2119S-105mm/0.2mm0.010mm0.0010-100-01.5N or lessw/ Lug$178.20
Qty:
2119SB-105mm/0.2mm0.010mm0.0010-100-01.5N or lessFlat-Back$178.20
Qty:
2124S-105mm/0.5mm0.012mm0.0050-501.5N or lessw/ Lug$131.40
Qty:
2124SB-105mm/0.5mm0.012mm0.0050-501.5N or lessFlat-Back$131.40
Qty:
2310S-1010mm/1mm0.015mm0.010-1001.4N or lessw/ Lug$108.90
Qty:
2310SB-1010mm/1mm0.015mm0.010-1001.4N or lessFlat-Back$108.90
Qty:
2320S-1020mm/1mm0.020mm0.010-1002.0N or lessw/ Lug$126.00
Qty:
2320SB-1020mm/1mm0.020mm0.010-1002.0N or lessFlat-Back$126.00
Qty:
2330S-1030mm/1mm0.025mm0.010-1002.5N or lessw/ Lug$158.40
Qty:
2330SB-1030mm/1mm0.025mm0.010-1002.5N or lessFlat-Back$153.90
Qty:
2902S10mm/1mm0.013mm0.01100-01.4N or lessw/ Lug$91.80
Qty:
2902SB10mm/1mm0.013mm0.01100-01.4N or lessFlat-Back$91.80
Qty:
2952S30mm/1mm0.025mm0.01100-02.5N or lessw/ Lug$189.00
Qty:
2952SB30mm/1mm0.025mm0.01100-02.5N or lessFlat-Back$194.40
Qty:

Features

Series 2 dial indicators are Mitutoyo’s most popular, and have the widest application.
Standard 0.01mm graduation dial gauges having an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard.
The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face.
The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use.
A carbide contact point is used.
The grand gear uses stainless steel that is resistant to wear and deformation.
Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant.

Additional information

Weight N/A
Dimensions N/A
Graduation

0.01, 0.001, 0.005

Range

5mm/1mm, 10mm/1mm, 20mm/1mm, 30mm/1mm, 1mm/0.2mm, 2mm/0.2mm, 1mm/0.1mm, 5mm/0.2mm, 5mm/0.5mm

Dial Reading

0-100, 0-50-0, 100-0, 0-100-0, 0-100-100, 0-50

Model Type

w/ Lug, Flat-Back

Accuracy

0.012mm, 0.013mm, 0.015mm, 0.020mm, 0.025mm, 0.005mm, 0.007mm, 0.010mm

Force

1.4N or less, 2.5N or less, 1.5N or less, 2.0N or less
