Disk Micrometers – Series 323, 223, 123

Micrometers

Showing 13–24 of 57 results

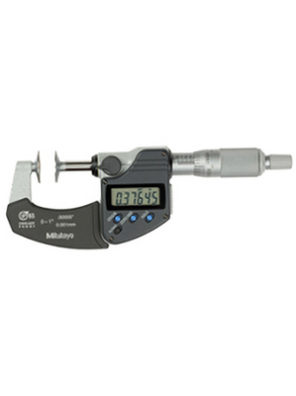

  • Disk Micrometers – Series 323, 223, 123
    Starting at $225.90

    Diameter of measuring disk: 20mm / .787”
    0.7mm / .028” (1mm: models over 100mm) edge thickness to enter narrow recesses.
    With Ratchet Stop for constant force.
    With a standard bar except for 25mm / 0 – 1” model.
    With SPC output (Series 323).
    The Series 223 is provided with a mechanical digit counter for quick reading of measurements.
    Supplied in fitted plastic case. (Over 100mm models supplied wooden cases)

    Select options

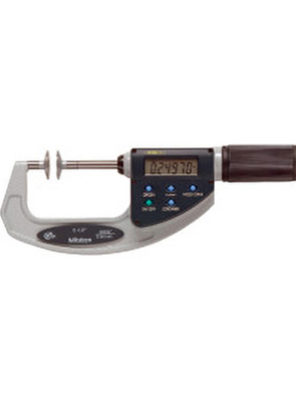

  • Disk Micrometers – Series 369, 227, 169 – Non-Rotating Spindle Type
    Starting at $334.80

    The Disk Micrometer is designed to easily measure root tangent length of spur gears and herical gears.
    Non-rotating spindle eliminates torque on workpiece.
    With standard bar except 0 – 15mm, 0 – .6” 0 – 25mm, 0 – 1”, 0 – 300mm & 0 – 1.2” model
    Speedy spindle feed of 10mm/rev. (Quickmike type).
    Diameter of measuring disk: 20mm / .787”
    With Ratchet Stop for constant force.
    With SPC output (Series 369).
    Supplied in fitted plastic case

    Select options

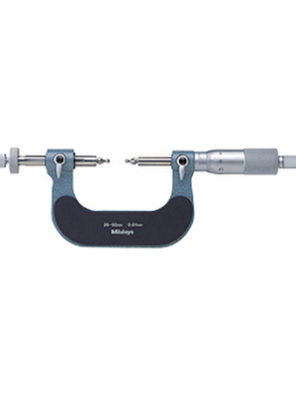

  • Gear Tooth Micrometers – Series 324, 124 – Interchangeable Ball Anvil Type
    Starting at $282.60

    IP65 water/dust protection (324 series).
    Measures over-pin diameter of gears with precision steel (carbide) ball-tipped measuring faces.
    With a standard bar except 0-25mm and 0-1” model
    Interchangeable ball anvil-spindle tips for various gear modules (0.5 – 5.25) are optional.
    With Ratchet Stop for constant force.
    With SPC output (Series 324).
    Supplied in fitted plastic case (models over 150mm supplied in wooden case).

    Select options
  • Groove Micrometers - Series 146Groove Micrometers - Series 146

    Groove Micrometers – Series 146
    Starting at $233.10

    Flanged spindle for measuring width,depth, and location of grooves inside/outside bores, and tubes.
    Provided with two types of graduations for inside and outside measurements.
    Non-rotating spindle type has two directional ratchet stop.(Measuring force: 0.7 – 1.2N)

    Select options

  • Hub Micrometers – Series 147
    Starting at $197.10

    Measures hub thickness and shoulders inside a bore.
    With Ratchet Stop for constant force.
    With a standard bar except for 0 -25mm /0-1in model.
    Supplied in fitted plastic case.

    Select options
  • Indicating Micrometer - Series 510Indicating Micrometer - Series 510

    Indicating Micrometer – Series 510
    Starting at $785.70

    Retractable anvil with indicator for threewire measurements of pitch diameter of precision screws, and parallelism measurements.
    With a standard bar except for 0-25mm /0-1″ model.
    IP protection level: 54
    Supplied in fitted plastic case.

    Select options

  • Limit Micrometers
    Starting at $248.40

    Can be used as a GO/±NG gage by setting the upper and lower limits.
    Provided with a standard bar for 25mm-50mm model.
    Supplied in fitted plastic case.

    Select options

  • MDH Micrometer High-Accuracy Sub-Micron Digimatic Micrometer
    $1,512.00

    Enabling .000005”/ 0.1μm resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a hand-held tool.
    A highly rigid frame and high-performance constant-force mechanism* enable more stable measurement, while the clicks emitted while the work piece is being measured assure the operator that measurement is proceeding normally. * Patent pending in Japan, the United States of America, the European Union, and China.
    Body heat transferred to the instrument is reduced by a (removable) heat shield, minimizing the error caused by thermal expansion of the frame when performing handheld measurements.
    The ABS (absolute) rotary sensor also eliminates the need to perform origin setting each time the power is turned on, letting you start measuring straight away. With no possibility of over speed errors, the High-Accuracy Digimatic Micrometer also delivers a higher level of reliability.

    Select options
  • Micrometer Standards - Series 167Micrometer Standards - Series 167

    Micrometer Standards – Series 167
    Starting at $18.95

    Used for the zero point setting of outside micrometers.
    Flat and lapped measuring faces.
    Heat insulating handle to prevent expansion due to body temperature.
    Supplied in fitted carton up to 500mm / 20” and wooden case for over 525mm / 21” Length

    Select options
  • Micrometer Stands - Series 156Micrometer Stands - Series 156

    Micrometer Stands – Series 156
    Starting at $72.72

    These stands are designed to allow bench-top use with hand micrometers or other gauges.

    Select options
  • Optical FlatsOptical Flats

    Optical Flats
    Starting at $244.00

    Used for inspecting the flatness of micrometer’s or gauge block’s measuring faces with high accuracy.
    Supplied in fitted wooden case.

    Select options
  • Optical Parallel SetsOptical Parallel Sets

    Optical Parallels
    Starting at $135.00

    Designed to inspect parallelism and flatness of measuring faces of micrometers.
    Each set consists of 4 thicknesses.
    Supplied in fitted wooden case.

    Select options
