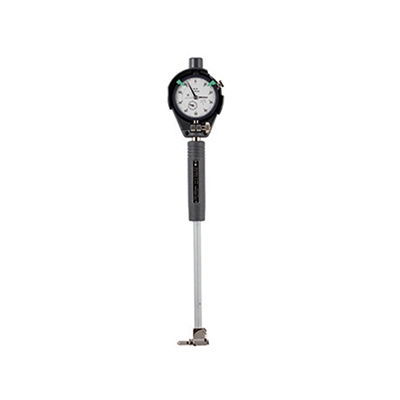

Bore Gauges Series 511 – for Blind Holes

Starting at $360.00

• Measure ID at position close to the bottom of blind holes.
• Carbide-contact point ensures high durability and wear resistance.
• Grip is large and hollow to reduce effect of body heat on high-accuracy measurements

Clear
Qty:
SKU: N/A Category:

Description

SKUItem TypeGaugeRangeAnvilsAnvil w/ Sub-anvilSpacersPriceBuyhf:att:pa_item-typehf:att:pa_color
511-418*InchWithout Dial gage.6-1.4in-11-.4in1$394.20
Qty:
inch
511-419*InchWithout Dial gage1.4-2.4in6-4$403.20
Qty:
inch
511-420*InchWithout Dial gage2-6in-11-2in4$435.60
Qty:
inch
511-428InchWith 2922SB/ Grad .0005 in.6-1.4in-11-.4in1$486.90
Qty:
inch
511-429InchWith 2922SB/ Grad .0005 in1.4-2.4in6-4$495.90
Qty:
inch
511-430InchWith 2922SB/ Grad .0005 in2-6in-11-2in4$528.30
Qty:
inch
511-438InchWith 2923SB-10/ Grad .0001 in.6-1.4in-11-.4in1$514.80
Qty:
inch
511-439InchWith 2923SB-10/ Grad .0001 in1.4-2.4in6-4$514.80
Qty:
inch
511-440InchWith 2923SB-10/ Grad .0001 in2-6in-11-2in4$560.70
Qty:
inch
511-415*MetricWithout Dial gage15-35mm-11-10mm1$360.00
Qty:
metric
511-416*MetricWithout Dial gage35-60mm6-4$360.00
Qty:
metric
511-417*MetricWithout Dial gage50-150mm-11-50mm4$366.30
Qty:
metric
511-425MetricWith 2046SB/ Grad 0.01 mm15-35mm-11-10mm1$421.20
Qty:
metric
511-426MetricWith 2046SB/ Grad 0.01 mm35-60mm6-4$421.20
Qty:
metric
511-427MetricWith 2046SB/ Grad 0.01 mm50-150mm-11-50mm4$450.00
Qty:
metric
511-435MetricWith 2019SB-10/ Grad 0.001 mm15-35mm-11-10mm1$440.10
Qty:
metric
511-436MetricWith 2019SB-10/ Grad 0.001 mm50-100mm11-4$440.10
Qty:
metric
511-437MetricWith 2019SB-10/ Grad 0.001 mm50-150mm-11-50mm4$472.50
Qty:
metric

Features

• Measure ID at position close to the bottom of blind holes.
• Carbide-contact point ensures high durability and wear resistance.
• Grip is large and hollow to reduce effect of body heat on high-accuracy measurements

Technical Data

Accuracy: 4µm / .00016”
Indication stability: 1µm / .0004”
Graduation: 0.01mm, 0.001mm, .0005” or .0001″

Additional information

Weight N/A
Dimensions N/A
Item Type

Inch, Metric

Gauge

Without Dial gage, With 2922SB/ Grad .0005 in, With 2923SB-10/ Grad .0001 in, With 2046SB/ Grad 0.01 mm, With 2019SB-10/ Grad 0.001 mm

Range

.6-1.4in, 1.4-2.4in, 2-6in, 15-35mm, 35-60mm, 50-100mm, 50-150mm

Anvils

-, 6, 11

Anvil w/ Sub-anvil

-, 11-2in, 11-.4in, 11-10mm, 11-50mm

Spacers

1, 4
