Dial Indicators – Series 2 – Metric Standard Type

Dial Indicators

Showing 25–36 of 54 results

  • Dial Indicators – Series 2 – Metric Standard Type
    Starting at $69.75

    Series 2 dial indicators are Mitutoyo’s most popular, and have the widest application.
    Standard 0.01mm graduation dial gauges having an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard.
    The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
    Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face.
    The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use.
    A carbide contact point is used.
    The grand gear uses stainless steel that is resistant to wear and deformation.
    Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant.

    Select options

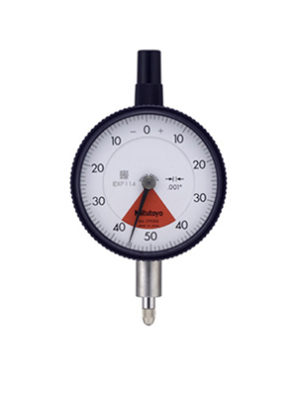

  • Dial Indicators – Series 2 – Standard One Revolution Type for Error-free Reading
    Starting at $62.96

    An unique shock-proof mechanism is incorporated, providing improved immunity to shock due to sudden spindle retraction caused by high impact.
    The crystal is hard coated for durability and scratch resistance.
    Approximately 40% lighter than the conventional dial indicator.
    Provided with an improved resistance to shop floor contaminants such as water and dust.
    Due to the spindle bushing being offset from the stem, spindle movement will not be hindered or jammed when clamping along the stem.
    A pair of limit hands are provided for quick and easy tolerance judgment (GO/±NG).

    Select options

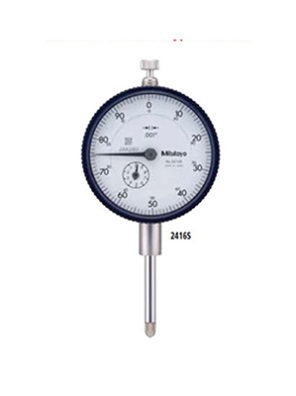

  • Dial Indicators – Series 2 – Standard Type, Inch Reading
    Starting at $99.90

    Stem 3/8 in dia. ø8mm #4-48 UNF Thread

    Select options

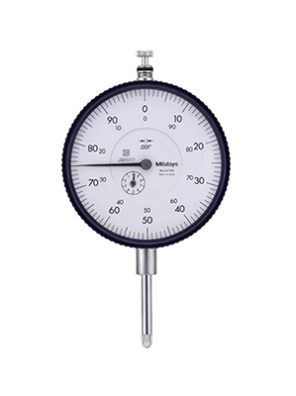

  • Dial Indicators – Series 3 – Large Dial Face
    Starting at $133.20

    Dial gauges with a large-diameter (78mm / 3.07”) graduation face to ease reading.
    All types come with limit pins and an outer frame clamp as standard.

    Select options

  • Dial Indicators – Series 4 – Large Dial Face
    Starting at $187.20

    Dial gauges with a large-diameter (92mm/3.62″)graduation face to ease reading.
    All types come with limit pins and an outer frame clamp as standard.

    Select options

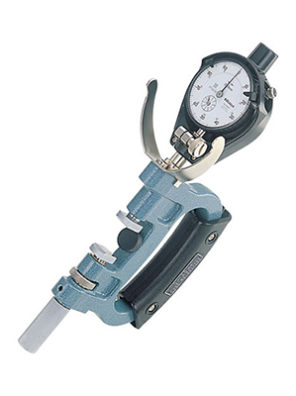

  • Dial Snap Gauges – Series 201
    Starting at $388.80

    Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes.
    Dial indicator is optional.
    Anvil retracting stroke: .078”/2mm
    Anvil positioning range: 1”/25mm
    Wide (.53 x .47”/13.5 x 12mm), flat carbide anvils.
    Both front edges of the anvil are chamfered for easy insertion.

    Select options

  • Dial Tension Gauges – Series 546
    Starting at $162.90

    Can measure dynamic tension in Newton (N) units.
    Dial Tension Gages are widely used to determine the contact force of other measuring instruments as well as that of electrical relays, micro-switches, valves and precision springs.
    Convenient peak-hold type gages are also available.

    Select options

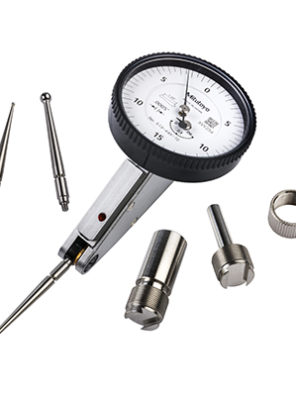

  • Dial Test Indicators – SERIES 513 – Horizontal (20° Tilted Face) Vertical and Parallel
    Starting at $162.90

    Specially designed for easy viewing of measurements.

    Select options

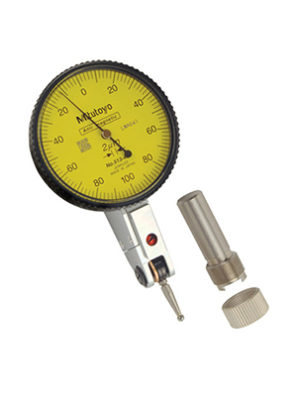

  • Dial Test Indicators – Series 513 – Horizontal Type
    Starting at $108.90

    Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
    No-clutch structure for automatic reversal of measuring direction.
    One-piece bezel and crystal design with O-ring provide resistance to water and dust.
    The glare-free flat crystal face has a scratch-resistant coating.
    High sensitivity and quick response because of jeweled bearings.
    Standard carbide contact point provide.

    Select options

  • Dial Test Indicators – Series 513 – Universal Type
    Starting at $380.70

    Universal application for all directions. Not only the direction of the measuring point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.

    Select options

  • Dial/Test Indicator Stand Sets
    Starting at $210.60
    Select options

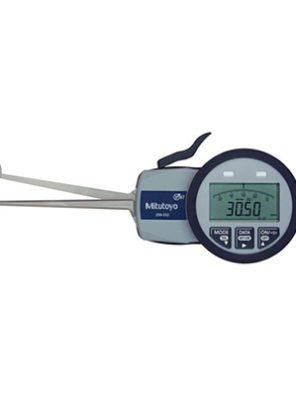

  • Digimatic Caliper Gauge – Series 209 – Internal Tube Thickness Measurement Type
    $662.40

    Versatile ID measuring gauges for holes diameters, groove thickness, tube thickness, and hard-to-reach dimensions. The Digimatic. Caliper Gauges provide error-free LCD readings as well as data output for SPC analysis.

    Select options
